An Energy Overview of Chile

Energy Summary [Oil, Natural Gas, Coal, Renewables, Infrastructure, Electricity]
Energy Policy | Environmental Activities | Privatization Status | Economic Situation | Trade & Investment

General Information

The Republic of Chile is located in southern South America, stretching along the west coast of the southern half of the continent. Chile shares a 3,200-mile border to the east with Argentina and also borders Bolivia to the northeast and Peru to the north. Chile is roughly twice the size of Montana, and its population was estimated at 15.3 million in 2000, with a growth rate of 1.4%. There are 13 administrative regions in Chile, each of which is headed by an Administrator who is appointed by the central government; these administrative regions are further subdivided into 40 provinces, each administered by a Governor who is also appointed by the central government. The capital city, Santiago, is located near the center of the country, inland from the Pacific coast, and has a population of about 6.1 million. Chile's currency, the Chilean peso, has an exchange rate (as of October 2002) of about 740 pesos per U.S. dollar (1 peso = $0.0014). The Gross Domestic Product (GDP) in 2000 was $70 billion, and is growing by about 3-4% annually. Chile is a member of the Asia Pacific Economic Cooperation (APEC), the Inter-American Development Bank (IADB), the World Trade Organization (WTO), and the Organization of American States (OAS). Chile is also an associate member of the Mercado Comun del Sur (Mercosur).


Energy Policy and Regulation

Chile's National Energy Commission (CNE) has promoted a sustainable development program for energy. The four policy guidelines established are:

Chile's long range electric power capacity expansion plan released in April 2002 shows a growing dependence on gas-fired electric power generation. The CNE foresees the development over the next decade of 10 new combined-cycle gas-fired power plants, but only one new hydroelectric facility in its Central Interconnected System (SIC), the central region's grid which serves 93% of Chile's population.

A new electricity law, Law No. 19,613, was passed in 1999 and gives the Superintendency of Electricity and Fuels the power to monitor power companies and impose fines on them for failing to meet their contractual supply obligations to distributors and large customers. The law was passed as a political response to Chile's power shortages, which began in November 1998. Article 99bis and Resolution 88 of the electricity law have been a source of contention in Chile's electricity sector. Article 99 requires generators to guarantee electricity supply in all circumstances, including during drought, under the threat of fines. Resolution 88 requires generators to sell electricity to distributors even without a contract.

In May 2002, fast track electricity legislation was sent before the Chilean parliament and will make some changes to the present regulations, above all in transmission. The bill modifies rates and tolls, defines and sets prices for complementary services, and modifies the rates system in the Aysén and Magallanes isolated grids. But it does not modify those aspects of the current legislation that have inhibited investment by generators -- Article 99bis or Resolution 88.


Energy Summary

Chile's energy sector is largely privatized, particularly the electricity industry. Chilean energy demand has been growing rapidly (averaging more than 7% annually) since 1992. A significant portion of this growth has come from increased power demand by the mining sector, the country's single largest industry, and by large urban areas such as Santiago, which alone contains almost 40% of Chile's population. The increased demand combined with scant fossil fuel resources make Chile a net importer of energy.

An historical summary of Chile's Total Primary Energy Production (TPEP) and Consumption (TPEC) is shown in Table 1.

Table 1: Chile's TPEP and TPEC, 1990-2000
(in Quads)


  1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
TPEP 0.31 0.30 0.33 0.33 0.33 0.33 0.31 0.33 0.29 0.23 0.28
TPEC 0.56 0.56 0.60 0.65 0.69 0.75 0.82 0.95 0.94 0.99 1.03

note: 1 Quad = 1 quadrillion Btu
Source: DOE/EIA

Oil
Production and Consumption
Chile's state-owned oil company, Empresa Nacional de Petroleo (ENAP), is the main energy supplier, filling more than 40% of Chile's national energy demand. Chilean crude oil reserves in 2000 were estimated at between 100 million and 200 million barrels. Chile's oil demand has nearly doubled over the past decade, while crude oil production has declined by half, leading Chile to increase its imports of oil dramatically. Presently, Chile's main sources of imported oil are Nigeria, Gabon, and Venezuela, but other sources are possible. ENAP's international arm, Sipetrol, holds equity in production operations in Argentina, Brazil, Colombia, Ecuador, Egypt, and Venezuela, with production of about 25,000 barrels per day (b/d) of oil equivalent. Sipetrol is also considering expanding operations in the Middle East.

An historical summary of petroleum production and consumption in Chile is shown in Table 2.

Table 2: Petroleum Production and Consumption in Chile, 1990-2000
(in thousand b/d)


  1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Production (total)*   33   29   27   27   25   24   22   15   16   16   15
Production
(Crude Oil only)
  20   17   15   14   12   11     9     7     8     8     7
Consumption 134 144 151 168 179 197 217 228 239 244 245

* includes crude oil, natural gas plant liquids, other liquids, and refinery processing gain
Source: DOE/EIA

Refineries and Downstream Processing
ENAP will invest almost $300 million in new projects in 2002, the largest annual investment budget in the company's history. This investment will go toward modernizing ENAP's refining operations, maintaining crude oil production, and beginning production of high-quality diesel fuel.

Chile has three crude oil refineries, all of which are operated by ENAP or its subsidiary companies. The largest of these is the Petrox SA refinery (100,640 b/d crude oil capacity), which is located at the port city of San Vicente in the Bío-Bío region of central Chile. This refinery is supplied oil from Argentina via the Estenssoro-Pedrals (formerly the Transandino) pipeline, and accounts for about 41% of Chile's refining capacity. The second-largest is ENAP's Refinería de Petróleo Concon (94,350 b/d), which is located near Santiago in the Metropolitan region. The smallest of Chile's refineries is ENAP's Gregorio refinery (9,859 b/d), located in far southern Chile, which is supplied crude oil from an independent pipeline system local to that region. The total refining capacity of Chile's three refineries is 204,849 b/d of crude oil.

Other petrochemical manufacturing in Chile includes one of the largest methanol production facilities in the world, owned by Methanex, at Puntas Areans in Magellanes region of far southern Chile. In 1999, Methanex commissioned its third methanol production unit at Punta Arenas, which has an annual capacity of 975,000 tons. This unit brings the total nameplate methanol production capacity of the complex to 2.7 million metric tons per year.

An historical summary of Chile's output of refined petroleum products by fuel type is shown in Table 3.

Table 3: Output of Refined Petroleum Products, 1990-99
(in thousands of b/d)


Refined Product Production Rate
1990 1991 1992 1993 1994 1995 1996 1997 1998 1999
Motor Gasoline   34   34   37   40   44   41   43   46   48   50
Jet Fuel     5     6     6     6     8     8     8   12   11   13
Kerosene     4     5     5     6     6     6     7     6     6     5
Distillate Fuel Oil   41   42   43   46   54   58   58   60   70   70
Residual Fuel Oil   25   25   28   27   24   40   32   33   31   29
Liquefied Petroleum Gases   14   12     8   17   14   15   15   11   12   13
Lubricants     0     0     2     0     0     0     2     2     2     0
Other *     3     8     6   11     9     4     8   11   24   21
Total Output 126 132 134 152 158 172 173 179 204 201
Refinery Fuel and Loss     5     5     5     6     6     7     7     7     8     8

* includes asphalt, coke, napthas, paraffin wax, and petrochemical feedstocks
Source: DOE/EIA

Natural Gas
Chilean natural gas reserves were estimated in January 2000 to be approximately 3.5 trillion cubic feet (tcf). Chile produces only a relatively small amount of natural gas, and until the mid 1990s, this was sufficient for its needs. However, following power shortages in the late 1990s resulting from a severe drought that greatly reduced hydroelectric power generation, CNE called for increasing the use of natural gas in Chile's energy mix (the goal is approximately 43% by 2020). New electricity generating capacity is beginning to come online that utilizes natural gas as fuel. Also, many industries in Chile now have access to natural gas, and there is a program to connect residential users in the larger cities to the gas transmission system as well. All this has resulted in Chile becoming a natural gas importer.

Gas import and production of natural gas in Chile is the responsibility of ENAP. Argentina currently is Chile's exclusive source of gas imports, which are supplied primarily through the GasAndes pipeline. Chile is also interested in obtaining gas from Bolivia, and in February 2000 opened discussions with the Government of Bolivia for that purpose.

An historical summary of natural gas production and consumption in Chile is shown in Table 4.

Table 4: Dry Natural Gas Production and Consumption in Chile, 1990-2000
(in tcf)


  1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Production 0.066 0.052 0.055 0.062 0.069 0.067 0.064 0.075 0.070 0.042 0.040
Consumption 0.066 0.052 0.054 0.062 0.069 0.067 0.064 0.099 0.114 0.162 0.184

note: "dry" gas means gas with condensates removed
Source: DOE/EIA

Coal
Coal production in Chile is mostly handled by Empresa Nacional del Carbón (ENACAR), which was privatized in 1985. Recoverable reserves of coal in Chile were estimated at 1.302 billion tons in 1999; the coal is of low quality and has high production costs. Coal production has greatly declined over the past decade; the country's largest coal mine was closed in 1997. Coal is now produced only in the Lota/Coronel area of Chile and at the extreme southern part of the country, in Tierra del Fuego; there are presently only two small commercial mines in operation in the country and much of the coal that is consumed in Chile is now imported, mostly from Australia.

Coal in Chile is primarily consumed in the electricity generating sector (72%) and for inputs to coke ovens in the steel sector (14%). The remainder is burned directly by industry, with the cement, food products and iron and steel sectors being the largest consumers. An historical summary of coal production and consumption in Chile is shown in Table 5.

Table 5: Coal Production and Consumption in Chile, 1990-2000
(in millions of tons)


  1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Production
  Anthracite
   Bituminous
   Lignite
2.41
  n/a
   2.41
   n/a
2.43
  n/a
   2.43
   n/a
1.79
  n/a
   1.79
   n/a
1.49
  n/a
   1.49
   n/a
1.30
  n/a
   1.30
   n/a
1.14
  n/a
   1.14
   n/a
1.11
  n/a
   1.11
   n/a
1.15
  n/a
   1.15
   n/a
1.04
  n/a
   1.04
   n/a
0.53
  n/a
   0.53
   n/a
0.40
  n/a
   0.40
   n/a
Consumption 4.14 3.30 2.94 2.97 3.54 3.89 5.34 6.98 6.51 6.78 5.10

n/a - not applicable
Source: DOE/EIA

Hydroelectric and Other Renewables
Hydroelectric Power
Because of the short distance between the Andes and the Pacific Ocean, there are no major river systems in Chile; instead, there are many relatively short-length rivers which rise in the Andes and flow west to the Pacific. The most important of these (from north to south) are the Loa, the Elqui, the Aconcagua, the Maipo, the Maule (with its largest tributary, the Melado), the Bío-Bío (with its largest tributary, the Laja), and the Imperial. The rivers of Chile, for the most part, are unnavigable because of many rapids and cascades; however, they are very important to the country because of the irrigation waters and hydroelectric power they furnish.

Hydroelectric power plants presently represent about 40% of the installed generating capacity of Chile, and, in 2000, provided about half of Chile's electricity. The amount of electricity generation from year to year has been extremely variable due to climate conditions in the country. The largest hydroelectric facility in the country is the 500 megawatt (MWe) Pangue Power Plant, located on the Bío-Bío River in central Chile. There are presently ten other hydroelectric facilities in Chile with at least 100 MWe capacities. A listing of Chile's largest hydroelectric power plants is shown in Table 6.

Table 6: Hydroelectric Generating Plants in Chile
(10 MWe and greater)


Generating Facility Owner Location Capacity
(MWe)
Region River
Pehuenche Pehuenche SA Maule Melado, Maule 500
Pangue Pangue SA Bío-Bío Bío-Bío 467
Colbún Colbún SA Maule Maule 400
El Toro Endesa-Chile Bío-Bío Laja 400
Rapel Endesa-Chile Liberator Rapel 350
Antuco Endesa-Chile Bío-Bío Laja 300
Cordillera AES Gener SA n/a n/a 256
Rucúe Colbún SA Bío-Bío Laja 166
Alfalfal AES Gener SA Metropolitan Maipo 160
Canutillar Endesa-Chile Los Lagos n/a 145
Abanico Endesa-Chile Bío-Bío Laja 136
Cipreses Endesa-Chile Maule Maule 101
Machicura Colbún SA Maule Maule   90
Currilinque Pehuenche SA Maule Maule   85
Sauzal Endesa-Chile Libertador Cachapoal   77
Peuchén Ibener SA Bío-Bío Duqueco   75
Aconcagua Aconcagua SA Valparaíso Aconcagua   73
Isla Endesa-Chile Maule Maule   68
Mampil Ibener SA Bío-Bío Duqueco   49
Pullinque Pilmaiquén SA Los Lagos Valdivia   49
Queltehues AES Gener SA Metropolitan Maipo   41
Los Quilos Aconcagua SA Valparaíso Aconcagua   39
Pilmaiquén Scudder
Latin America
Power Fund
Los Lagos Pilmaiquén   39
Loma Alta Pehuenche SA Maule Maule   38
Pangal Corp. Nacional
Cobred de Chile
Los Lagos Pangal   35
Coya Corp. Nacional
Cobred de Chile
Libertador Cachapoal   34
San Ignacio Colbún SA Maule Maule   33
Maitenes AES Gener SA Metropolitan Maipo   31
Florida SC del Maipo Metropolitan Maipo   28
Chacabuquito Hidroelectrica
Guardia Vieja SA
Valparaíso Aconcagua   25
Los Molles Endesa-Chile Coquimbo Los Molles   16
Puntilla E.E. Puntilla SA Metropolitan n/a   15
Volcán AES Gener SA Metropolitan El Volcán   13
Carbomet Carbomet Metropolitan n/a   11
Capullo E.E. Capullo Los Lagos Rahue   11
Chapiquina Empresa Electrica
del Norte Grande SA
n/a n/a   10
Sauzalito Endesa-Chile Libertador n/a   10

n/a - not available
Sources: CNE; Utility Data Institute

Hydropower development in Chile is still progressing rapidly, but not without controversy. The 570 MWe Ralco hydroelectric dam, planned for the Bío-Bío river in central Chile, was the focus of violent clashes between police and the Pehuenche Indians in May 2002. Chilean aboriginal groups oppose the construction, as the reservoir impounded by the dam will flood land to which they claim historical ownership rights. The dam's owner, Endesa-Chile, has said the protests will not delay construction, which is scheduled to be completed by the end of 2003.

Other large dams are also being planned. Australian power company Pacific Hydro and Germany's Lahmeyer called for bids at the end of May 2002 to construct a $200 million, 240 MWe hydroelectric project in Libertador Region in central Chile. Construction is expected to start in 2003, with operations beginning in 2006. The Canadian-owned mining and metals company Noranda is planning to build three hydroelectric dams that would supply a total of 758 MWe for its Alumysa aluminum smelting project in southern Chile. These and other hydroelectric facilities in planning or construction phases in Chile could add more than 2,500 MWe to Chile's electricity generating capacity. A summary of some of these planned hydroelectric facilities is shown in Table 7.

Table 7: Hydroelectric Generating Plants in Chile
(Planned or Under Construction)


Generating Facility Owner Location Capacity
(MWe)
Status
Region River
Ralco Endesa-Chile Bío-Bío Bío-Bío 570 Construction
(startup in 2003)
Alumysa-Cuervo Noranda Aysén Cuervo 434 Planned
Alumysa-Blanco Noranda Aysén Blanco 280 Planned
n/a Pacific Hydro,
Lahmeyer
Libertador n/a 240 Planned
Huequecura Endesa-Chile Bío-Bío Bío-Bío 150 Planned
Rucatayo Empresa Electrica
Puyehue SA
Los Lagos n/a   61 Planned
Alumysa-Cóndor Noranda Aysén Cóndor   44 Planned
Lago Atravesado Empresa Electrica
de Aysén SA
Aysén n/a   11 Construction
(startup in 2003)

n/a - not available
Sources: Utility Data Institute; Noranda

Other Renewable Energy
In an effort to increase rural electrification in Chile, the United Nations Development Program and the Global Environment Facility launched a project that will establish technical rules and certification processes for the implementation of renewable energy sources in rural areas, promote renewable energy and provide training in project design, installation and management, draw up a national wind map, and create a financial mechanism to reduce investment risks. Some of the plans for the project include wind projects on Robinson Crusoe island, and biomass and geothermal projects at other locations. Solar power projects that will benefit 5,000 families in the north and center-south of the country are also being explored.

No geothermal electricity generation yet exists in Chile, though there is an installed thermal capacity of 0.4 megawatts-thermal (MWth) that produces about 7 terajoules per year of direct-use heating. A new geothermal concessions law in Chile gives preference to groups that can demonstrate they have already undertaken exploratory work at proposed concession sites. Applications for 23 sites were submitted in January 2001 to win preferential rights to geothermal concessions at locations in northern, central and southern Chile. AES Gener is planning to partner with ENAP to develop a 50 MWe geothermal power generation project. AES Gener has undertaken basic geothermal studies, and is waiting for the U.S. Trade and Development Agency to visit the country to determine funding for conducting a more detailed feasibility study.

Energy Transmission Infrastructure
Oil Pipelines
Chile contains 471 miles of crude oil pipelines and 490 miles of petroleum product pipelines. The most significant crude oil pipeline in Chile is the Estenssoro-Pedrals pipeline (formerly called the Transandino pipeline) that supplies petroleum from Argentina's Neuquén basin to the Petrox SA refinery in central Chile. Sonacol is Chile's domestic oil and products pipeline operator; Sonacol is owned by Copec, Esso, ENAP, and Shell Chile.

Gas Pipelines
Chile imports the natural gas it consumes from Argentina. Gas imports are delivered through the GasAndes pipeline in central Chile, as well as three newer lines. One of these is the 330-mile Gasoducto del Pacifico line that opened in November 1999 and can transport up to 140 million cubic feet per day (mmcf/d) of natural gas to southern Chile. Gasoducto del Pacifico is owned by a consortium of TransCanada Pipelines (operator), El Paso International, Chile's Gasco, ENAP, and the Spanish/Argentine company Repsol-YPF. Presently, there is not enough demand to satisfy the pipeline capacity, as electricity generation in southern Chile is mostly non-thermal (i.e., hydropower).

The 584-mile GasAtacama pipeline, co-owned by Endesa-Chile and the U.S.-based CMS Energy, came onstream in July 1999. GasAtacama's only customer at present is the Nopel power plant of the same owners, which uses less than one-third of the pipeline's 300 mmcf/d capacity. The pipeline, which runs from Argentina's Salta province to Chile's Norte Grande province, has been extended northward to Endesa-Chile's Paposo power plant. Another northern Chile pipeline, which came onstream in November 1999, is the 280 mmcf/d Norandino pipeline, which transports natural gas from northwest Argentina to supply Electroandina's Tocopilla power plant and other gas-fired power plants in Chile's northern Antofagasta region that provide energy for Chile's mining sector; the pipeline is owned by Belgium's Tractebel (79%) and the U.S.-based Southern Company.

Electricity Transmission
Power generation in Chile is organized around four grid systems: 1) Sistema Interconectado del Norte Grande (SING), the northern grid, which accounts for about 19% of national generation; 2) the Central Interconnected System (SIC), the central region's grid, which accounts for 68.5% of national generation and serves 93% of Chile's population; 3) the Aysén Grid in southern Chile (0.3% of total generation); and 4) the Magallanes Grid, also in southern Chile (0.8% of total generation). Electricity transmission and distribution takes place through the four grids, as well as 36 electricity distribution companies. Endesa-Chile, either directly or through its subsidiaries (Pehuenche SA, Pangue SA, and San Isidro SA), is the principal supplier to the SIC grid, accounting for 57% of the installed capacity and about 49% of electricity sold in 2001. On the other hand, SING is dominated by independent producers, though Endesa-Chile, through its subsidiary Celta SA, still accounts for about 20% of the installed generating capacity connected to that grid.

A diagram of Chile's SIC electricity grid is shown in Figure 1.

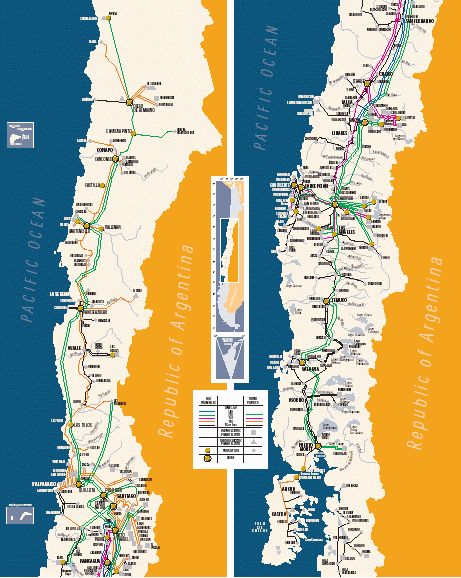

Figure 1: Chile's SIC Electricity Grid

Chile's SIC electricity grid (warning: 417K image size)
(Click on Image to View a Much Larger Version)
Source: Transelec

Electricity transmission in Chile's SIC grid is largely the responsibility of Transelec, which was acquired by HydroQuebec from Endesa-Chile in October 2000 as a result of deregulation of Chile's electricity industry. Transelec provides electric power to 93% of all electricity customers in Chile; its system includes about 7,300 kilometers of electricity transmission lines, of voltages from less than 66 kilovolts (kV) up to 500 kV, and about 350 substations. Transelec owns 100% of the 500 kV transmission lines and about 72% of the 220 kV lines in the SIC grid. Other companies that own part of the SIC grid include Colbún SA, which owns and operates a 270-kilometer line from Colbún to Santiago.

The SING grid, on the other hand, has no dominant player. Several different companies own and operate parts of that grid, including AES Gener SA, whose TermoAndes line links a new gas-fueled power plant in northwestern Argentina to the SING grid, and Endesa's subsidiary Celta. A summary of the companies who operate the SING grid is shown in Table 8.

Table 8: Operators of Chile's SING Electricity Grid, 1999

Operating Company 110 kV grid 220/345 kV grid Total
km % km % km %
AES Gener SA        644   17    644   12
Edelnor SA    566   41    524   14 1,090   21
Celta        518   14    518   10
Electroandina SA    575   41    472   12 1,047   20
Norgener SA      33     2    242     6    275     5
Nopel        307     8    307     6
Various Mining Companies    217   16 1,120   29 1,337   26
Total 1,391 100 3,827 100 5,218 100

note: km = kilometers
Source: Electroandina SA

A high voltage interconnection between Argentina and central Chile is being contemplated by Transener, controlled by the United Kingdom's National Grid Co., and Argentina's energy conglomerate Pecom Energia. In December 2001, Transener proposed a 320 kilometer, 500 kV line from Mendoza, Argentina, to Polpaico, some 40 kilometers northeast of Santiago. Better electricity interconnections could help both Chile and Argentina, from an electricity import/export perspective. Argentina's generation is largely thermal-electric, whereas Chile has heavy reliance on hydroelectric power. Ideally, Chile could export electricity to Argentina in the summer, when hydropower is plentiful, and Argentina could then export electricity from fossil fuel power plants to Chile during the winter. Transelec and Endesa of Spain have also shown an interest in developing an Argentina-to-central Chile interconnection.

Electricity
Generation and Consumption
Significant growth in electricity consumption has occurred over the past decade, and is expected to continue, given the country's rapidly growing industrial base, especially in the copper mining and chemical industries, and also in the residential and commercial sector. Electricity generation has seen a similar increase (about double the total for 1990); the largest increase has been in thermal-electric generation, which is about two-and-a-half times what it was in 1990.

An historical summary of electricity generation and consumption in Chile is shown in Table 9.

Table 9: Electricity Generation and Consumption in Chile, 1990-2000
(in billion kWhr)


  1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Net Generation
  hydroelectric
   nuclear
   geo/solar/wind/biomass
   conventional thermal
20.4
 11.9
    n/a
    0.3
    8.2
19.2
 13.0
    n/a
    0.3
    5.9
22.2
 16.6
    n/a
    0.5
    5.2
23.8
 17.0
    n/a
    0.5
    6.3
25.0
 16.8
    n/a
    0.5
    7.7
25.9
 18.2
    n/a
    0.7
    7.1
28.0
 16.7
    n/a
    0.9
  10.4
31.7
 18.2
    n/a
    0.8
  12.7
32.7
 15.0
    n/a
    1.0
  16.6
37.6
 13.3
    n/a
    1.0
  23.2
39.6
 18.3
    n/a
    1.0
  20.3
Net Consumption 18.9 17.8 20.7 22.1 23.3 24.1 26.0 29.5 30.4 35.1 37.9
Imports   0   0   0   0   0   0   0   0   0   0   1
Exports   0   0   0   0   0   0   0   0   0   0   0

n/a - not applicable
generation components may not add to total due to rounding
Source: DOE/EIA

Installed Capacity
Chile has dramatically ramped-up its electricity generating capacity, especially for conventional thermal-electric generation. The severe drought in Chile from late 1997 to 1999 crippled the country's electricity sector. As a result, Chile is committed to diversifying its electricity generation sources. Natural gas has already become an increasingly important electricity source, but even it is not without critics. A petroleum industry workers strike in Argentina, which supplies all of Chile's gas, shut down the GasAndes pipeline for several hours in February 2002. Proponents of increased hydroelectric investment argue that natural gas is not a panacea, claiming the strike in Argentina shows just how susceptible the country is to Argentine volatility.

A summary of Chile's electricity generating capacity by type of technology used, for the years 1998 and 2000, is shown in Table 10.

Table 10: Electricity Generation Capacity in Chile by Technology

Technology Installed Capacity (MWe)
mid 1998 mid 2000
Hydroelectric
  Utility
   Non-Utility
3,862
3,735
    127
4,130
3,834
    296
Conventional Thermal
  Utility
   Non-Utility
2,161
1,555
    606
3,436
3,040
    396
Gas Turbine *
  Utility
   Non-Utility
   616
   489
    127
1,955
1,427
    528
Diesel
  Utility
   Non-Utility
   150
     72
      78
   179
     71
    108
Total Capacity
  Utility
   Non-Utility
6,789
5,851
    938
9,700
8,372
1,328

note: "conventional thermal" means boiler + steam turbine
* includes both simple (single) cycle and combined cycle
Source: Utility Data Institute

An historical summary of installed electricity generating capacity in Chile is shown in Table 11.

Table 11: Installed Electricity Generation Capacity in Chile, 1990-2000
(in thousands of MWe)


  1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Hydroelectric 2.29 3.07 3.08 3.10 3.18 3.26 3.27 3.87 3.83 4.01   4.03
Nuclear n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a n/a
Geothermal/Solar/
Wind/Biomass
0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00   0.00
Conventional Thermal 1.79 1.74 1.74 1.74 1.74 2.25 2.70 3.49 3.72 4.39   6.24
Total Capacity 4.08 4.81 4.82 4.84 4.92 5.50 5.96 7.36 7.55 8.40 10.27

n/a - not applicable
Source: DOE/EIA

Industry Overview
Over the past decade, Chile has privatized 100% of its electricity industry and unbundled the national generation, transmission, and distribution systems. Empresa Nacional de Electricidad (Endesa-Chile) is Chile's largest electricity producer, producing over 50% of the country's power. Endesa-Chile was created in 1943 as a subsidiary of Corporacion de Fomento de la Producion (CORFO), which remained its majority shareholder until 1988. At that time, Endesa-Chile divested itself of its northern sector (including Edelnor), the Colbún and Machicura power plants (these became part of Colbún SA), and all the distribution areas in central and south Chile along with two small power plants. Today Endesa-Chile is part of the Enersis Group which is majority-owned by Endesa of Spain.

Several other electricity generating companies also hold significant market shares. Electroandina SA (which is about 22% owned by Tractebel) is the largest generating company in the SING grid of northern Chile, with about a 40% market share there. Electroandina currently operates four coal-fueled units, three heavy oil-fueled units, three diesel oil-fueled gas turbines, and recently brougnt online a 400 MWe natural gas-fueled combined cycle power plant in Tocopilla. Colbún SA (which is about 33% owned by Tractebel) is the third-largest generating company in the SIC grid area, with five hydroelectric power plants (780 MWe cumulative capacity) and a new 370 MWe natural gas-fueled combined cycle power plant at Nehuenco.

Chile's second-largest electric power generator, and largest thermal producer is AES Gener SA (formerly Chilgener). which owns 1,447 MWe of thermoelectric generating capacity in Chile, including the new Nueva Renca gas-fired plant which had been built by General Electric. In March 2002, AES announced informally that it is considering selling Gener in an attempt to shed assets to restructure the company's finances; AES had acquired Gener at about the beginning of 2001. Possible bidders for Gener include Duke Energy Corporation, which does not have a presence in the Chilean market and had previously unsuccessfully tried to buy Endesa. Belgium's Tractebel may also make a play for Gener. Besides its investment in Gener, AES also has a 49% stake (also acquired in 2001) of Empresa Electrica Guacolda SA, which owns and operates fossil-fueled power generation facilities that provide electricity to the SING grid.

Other relatively recent electricity industry events in Chile include the majority acquisition (85%) of Iberoamericana de Energía SA (Ibener) by the Spanish company Iberdrola in September 2000. Ibener SA owns and operates two hydroelectric power plants on the Duqueco River in central Chile.

A summary of Chile's electric power generation companies is shown in Table 12.

Table 12: Market Share of Chile's Electric Power Generation Companies
(as of mid-2000)


Company Total
Installed
Capacity
(MWe)
Market
Share
(%)
Endesa-Chile 3,867   39.9
AES Gener SA 1,447   14.9
Colbún SA 1,219   12.6
Nopel    710     7.3
Edelnor SA    698     7.2
Electroandina SA    628     6.5
Empresa Electrica Guacolda SA    328     3.4
Ibener SA    124     1.3
Aconcagua SA    115     1.2
Corp Nacional Cobre de Chile    112     1.2
all others (24 companies)    452     4.7
Total 9,700 100.0

note: percentages do not add to 100 due to rounding
Source: Utility Data Institute

The largest thermal-electric power plant in Chile is the 629 MWe Electroandina facility at Tocopilla in the northern Antofagasta region that generates electricity both by single-cycle gas turbine and conventional thermal (i.e., boiler and steam turbine). A new 400 MWe combined cycle power plant there has now raised Electroandina's installed capacity in Tocopilla to more than 1,000 MWe. A summary of Chile's thermal-electric power plants is shown in Table 13.

Table 13: Thermal-Electric Power Plants in Chile
(20 MWe and greater)


Generating Facility Owner Location
(Region)
Fuel Capacity
(MWe)
Conventional Thermal Power Plants
Tocopilla Electroandina SA Antofagasta Coal, Oil 549
Mejillones Edelnor SA Antofagasta Coal 341
Ventanas AES Gener SA Valparaíso Coal 338
Guacolda Empresa Electrica Guacolda SA Atacama Coal 300
Norgener AES Gener SA Antofagasta Coal 276
Bocamina Endesa-Chile Bío-Bío Coal 125
Renca AES Gener SA Metropolitan Oil 100
Talcahueno Refinery * Petropower Energía Ltda. Bío-Bío Petroleum Coke   68
Laguna Verde AES Gener SA Valparaíso Coal   55
Gas Turbine Combined Cycle
Nopel Nopel SA Antofagasta Natural Gas 480
Tocopilla Electroandina SA Antofagasta Natural Gas 400
Nehuenco Colbún SA Valparaíso Natural Gas 372
San Isidro Endesa-Chile Valparaíso Natural Gas 370
Mejillones Edelnor SA Antofagasta Natural Gas 250
Taltal Endesa-Chile n/a Natural Gas 240
Nueva Renca AES Gener SA Metropolitan Natural Gas 227
Paposo Endesa-Chile Antofagasto Natural Gas 120
Gas Turbine Simple (Single) Cycle
Pan de Azucar Endesa-Chile Atacama Oil 225
Charrua Endesa-Chile Bío-Bío Oil 197
Valdivia Endesa-Chile Los Lagos Oil 100
San Pedro Colbún SA Valparaíso Oil   80
Tocopilla Electroandina SA Antofagasta Natural Gas   80
Huasco Endesa-Chile Atacama Natural Gas   65
Guacolda Empresa Electrica Guacolda SA Atacama Natural Gas   28
Bocamina Endesa-Chile Bío-Bío Oil   24
Diego de Almagro Endesa-Chile Atacama Oil   24
Iquique Edelnor SA Tarapacá Oil   24
Barquito * Corp. Nacional Cobre de Chile Atacama Oil   23
Diesel Engine
Quebrada Blanca * Cia Minera Quebrada Blanca SA Antofagasta Oil   47
Iquique Edelnor SA Tarapacá Oil   36
Antofagasta Edelnor SA Antofagasta Oil   21
Mantos Blancos * Compañía Minera Mantos Blancos Atacama Oil   21
Maria Elena * Soc. Química Minera de Chile Antofagasta Oil   21

note: "conventional thermal" means boiler + steam turbine
* Cogeneration facility
Sources: Utility Data Institute; Endesa

Besides these, other thermal-electric power plants are in construction and planning stages, as Chile has strong incentive to diversify its power generating infrastructure. With the completion of natural gas pipelines from Argentina, several high-efficiency, natural gas-fueled combined-cycle projects have already been constructed and/or planned. Additionally, cogeneration of combined-heat-and-power (CHP) appears to be gaining favor in Chile, and several smaller CHP facilities are also in the planning stages. A summary of some of these planned thermal-electric facilities is shown in Table 14.

Table 14: Thermal-Electric Generating Plants in Chile
(Planned or Under Construction)


Generating Facility Owner Location
(Region)
Fuel Capacity
(MWe)
Status
Conventional Thermal Power Plants
Concon Refinery * Petropower Energía Ltda. Metropolitan Petroleum Coke   75 Planned
Laga Mill * Empresas CMPC SA Bío-Bío Biomass (?)   42 Planned
Pacífico Mill * Empresas CMPC SA Araucanía Biomass (?)   38 Planned
Gas Turbine Combined Cycle
Coloso Electroandino SA Antofagasta Natural Gas 400 Construction
Nehuenco Colbún SA Valparaíso Natural Gas 255 Planned
Paposo Endesa-Chile Antofagasta Natural Gas 240 Construction

note: "conventional thermal" means boiler + steam turbine
* Cogenerating facility
Sources: Utility Data Institute; CMPC

The larger Chilean generators belong to Centro de Despacho Economico de Carda (CDEC), which is responsible for determining the safe prices of electrical energy among the generating companies. Sale prices are regulated by a marginal tariff system established in 1982 whereby marginal energy costs are determined in relation to the optimal operation of the various generators on the system. Since 1992, marginal costs have been calculated hourly. Sales prices charged to distributors correspond to so-called "node prices" which are determined by the CNE. Node prices in Chile's central grid were reduced recently by 4.6% for the May through October 2002 period. The cut in node prices breaks a two-year period of semi-annual price hikes. Generators in Chile, however, continue to complain about the CNE's node price-setting system. Generators argue that the uncertainty embedded in six month resets, as well as the low level of the prices, restrains them from committing to build new power plants and discourages them from supplying regulated customers. CNE cites capacity constraints in Chile's central grid as the primary reason for continuing the node pricing scheme.


Environmental Activities

Carbon emissions from energy-related enterprises for the year 2000 were estimated at 15.14 million metric tons, or 0.24% of the world's total and 5.64% of the total for Latin America and the Caribbean. Chile ranks as fifth-most carbon emitter, just behind Colombia, for the Latin America/Caribbean region; its carbon emissions are about 16% of the Brazil's.

An historical summary of CO2 emissions from fossil fuel use in Chile is shown in Table 15.

Table 15: Fossil Fuel-related Carbon Dioxide Emissions in Chile, 1990-2000
(in millions of metric tons of carbon)


Component 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
CO2 from coal 2.50 1.96 1.72 1.76 2.08   2.27   3.10   4.40   4.17   4.35   3.25
CO2 from natural gas 1.04 0.84 1.11 0.93 1.05   1.01   1.02   1.54   1.77   2.50   2.83
CO2 from petroleum 5.08 5.44 5.68 6.35 6.80   7.56   8.17   8.59   8.87   9.04   9.07
Total CO2
from all
fossil fuels
8.63 8.24 8.50 9.04 9.93 10.85 12.28 14.54 14.81 15.89 15.14

components may not add to total due to rounding
Source: DOE/EIA

Chile is party to numerous international environmental agreements, including initiatives on Antarctic-Environmental Protocol, Antarctic treaty, Biodiversity, Climate Change, Endangered Species, Environmental Modification, Hazardous Wastes, Marine Dumping, Nuclear Test Ban, Ozone Layer Protection, Ship Pollution, and Wetlands. Environmental issues facing Chile include air pollution from industrial and vehicle emissions, water pollution from untreated sewage, deforestation contributing to loss of biodiversity, soil erosion, and desertification.

Environmental policy and regulations are developed by the Comision Nacional del Medio Ambiente (CONAMA), the National Environmental Commission. An Environmental Law was passed in March 1994, and regulations for its implementation have been approved. The regulation for Environmental Impact Assessment (EIA) requires all new projects to conduct an EIA which must be approved by CONAMA before implementation.


Privatization Status

Chile is a leading country of the privatization movement in the South American region. Chile adopted a progressive pricing mechanism during the 1980's, similar to the long-term marginal cost pricing schemes implemented by some developed countries. Over the past decade, Chile largely has privatized its electricity industry and unbundled the national generation, transmission, and distribution systems. Besides the CNE, which is responsible for central planning and tariff regulation, Chile's power sector is totally private. Privatization has increased efficiency and reduced distribution losses (including theft) in half over seven years. Electric companies operating in Chile are for the most part unregulated, with two major exceptions: 1) they must coordinate their operations through the Economic Load Dispatch Center (CDEC), whose function is to ensure efficiency and security of the electric system; and 2) prices for consumers whose demand is 2 MWe or less are set by the CNE for six-month periods.

Chile is often cited as a role model for countries considering privatizing their utilities. Privatization has worked in Chile for many reasons, including the country's stable investment climate; the government's commitment to minimize red tape; a large and globally-viable industrial customer base and, perhaps most importantly, an apolitical regulatory framework that rewards productivity and operating efficiency with reasonable tariff rates. With much of the sector in private hands, the government will next need to turn its attention to tracking the construction of new generating capacity and ancillary facilities to prevent a capacity glut.


Economic Situation

Chile's economy grew rapidly in the years 1991-1997, averaging 8% during that period. Chile's economic success is owed at least in part to its policies of liberal market economics, including free trade and openness towards foreign investment, along with prudent monetary and fiscal policies. However, in 1998, GDP growth fell to 3.2% because of tight monetary policies implemented to keep the current account deficit in check and lower export earnings -- the latter a product of the global financial crisis. A severe drought exacerbated the recession in 1999, reducing crop yields and causing hydroelectric shortfalls and electricity rationing, and Chile experienced negative economic growth for the first time in more than 15 years. By the end of 1999, exports and economic activity had begun to recover, and growth rebounded to 4.4% in 2000. Unemployment remains high, however, putting pressure on President Lagos to improve living standards.

Meanwhile, Chile has launched free trade negotiations with the European Union and the United States. Chile's negotiations for a free trade agreement (FTA) with the European Union are in an advanced stage, while the approval of trade promotion authority by the U.S. Senate signals that Chile may be able to complete a FTA with the United States in late 2002.

An historic summary of some of Chile's macroeconomic indicators is shown in Table 16.

Table 16: Chile's Macroeconomic Indicators, 1996-2001

  1996 1997 1998 1999 2000 2001
Annual GDP change, % 7.4 6.6 3.2 -1.0 4.4 2.8
CPI Inflation, % 6.6 6.0 4.7 2.3 4.5 2.6
Exchange Rate (pesos/US$) 422.4 438.3 473.8 527.7 572.7 656.2

Source: latin-focus.com


Trade and Investment

The United States is Chile's most important trade partner; other principal trading partners are the European Union, Japan, Argentina, and Brazil. While solid opportunities for U.S. products abound in Chile, competition is stiff, especially from countries with which Chile has already negotiated free trade agreements, such as Canada and Mexico. Chile also has an association agreement with the MERCOSUR block (Argentina, Brazil, Paraguay, and Uruguay), bilateral treaties with Venezuela, Colombia, Ecuador, and Peru, and an agreement with the Central American countries (Costa Rica, El Salvador, Guatemala, Honduras, and Nicaragua).

On April 26, 2002, Chile and the European Union reached a FTA deal, to be ratified during the year. Meanwhile, negotiations on FTAs with the United States and the EFTA countries (Iceland, Liechtenstein, Norway, and Switzerland) had made substantial progress and Chile was also holding exploratory trade talks with South Korea, Japan, and New Zealand. In addition, Chile actively supports efforts to establish a Free Trade Area of the Americas and is an active member of the APEC forum.

Chile has one of the simplest and most transparent regulatory systems in the region to deal with trade and business activities. Careful review of applicable regulation and full compliance with its guidelines will guarantee more successful and trouble-free operations in the Chilean market. Chile does maintain import and export licensing requirements, but they are more for statistical purposes rather than control. For all except agricultural products and a few sensitive items, virtually anyone is free to import anything.

Officially, Chile maintains a single 8% import tariff, but the effective average rate is lower (around 5.5%) due to bilateral and multilateral trade agreements. Chile maintains tariff-free trade for many goods with (among others) Mexico, the Mercosur bloc, Venezuela, Colombia, Ecuador, and Canada. In 1998, Chile and Peru signed a trade agreement that allows tariff-free access for 35% of Chile's exports and 60% of Chile's imports from Peru.

U.S. companies currently investing in the Chilean energy sector are relatively few, especially in the electric industry. AES and Entergy are two U.S. firms that have invested in power generation in Chile. Edelnor, the electric utility operating in northern Chile, is two-thirds owned by the U.S.-based Southern Company.

More U.S. companies are involved in oil and gas production and distribution. Cardinal Resources Inc., of White Plains, New York, partnered with ENAP on several seismic research programs in 1998. Chile also awarded Evergreen Resources Inc. and Cordex Petroleums Inc, (both of Denver, Colorado) contracts for oil exploration in 1997. Two U.S. firms, Seacor and Smit Inc., have teamed with Chile's Offshore L.L.C. to operate oil and gas rigs.

Chile is a particularly promising market for high technology and infrastructure-type products. These products include electricity generation and related products, pollution control equipment, telecommunications equipment, computers and peripherals, mining and construction industry equipment, building materials, medical equipment, port equipment, food processing equipment, air conditioning and refrigeration equipment, and security equipment.

The market for generating equipment and supplies looks promising since new power plant construction started in 1996 and will continue through at least 2005.



For more information,
please contact our
Country Overview
Project Manager:
      Richard Lynch
U.S. Department of Energy
Office of Fossil Energy
1000 Independence Avenue
Washington, D.C. 20585 USA

telephone: 1-202-586-7316

<-- Back

Return to Chile page
Return to Western Hemisphere page
Return to International Initiatives page


last updated on October 4, 2002

Comments On
Our Web Site
Are Appreciated!
