GLOBAL Renewable Energy Resources

Solar Energy

Global Irridiation

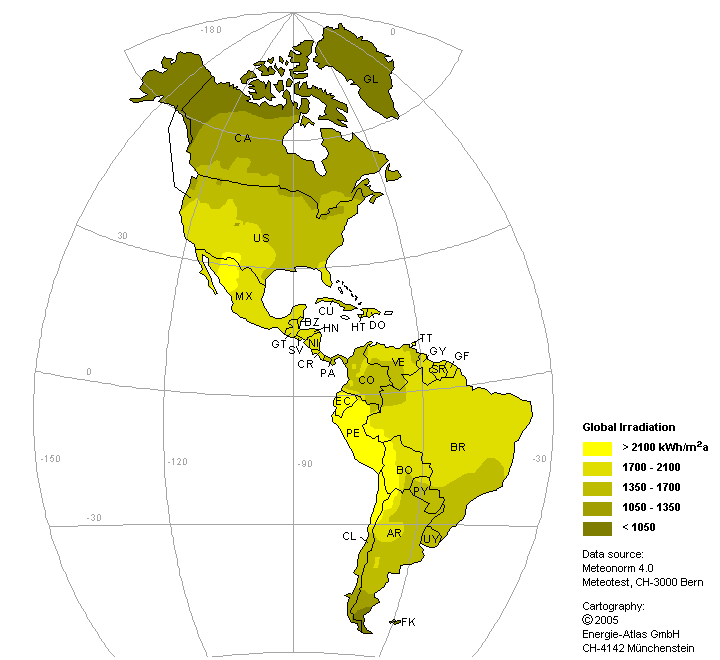

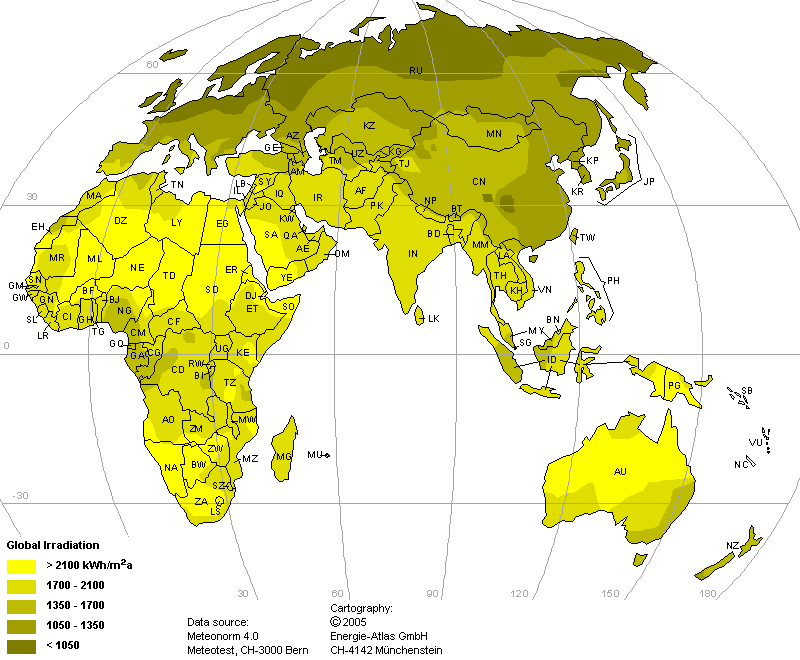

The maps show the geographical distribution of the solar radiation incident on the earth's surface each year. Depending on the shape of the sun's apparent path (solar ecliptic), the amount of radiation decreases towards the polar regions. The maximum values occur slightly south or north of the equator; their location is also determined by the incidence and type of cloud cover.
On the land area worldwide, this results in a solar radiation of at least 200,000,000 TWh per year. (For comparison: 9 billion people, each requiring 2,000 watts, would have a total annual energy demand of 160,000 TWh).

http://www.energie-atlas.ch/so-100.htm

The map shows the solar electricity generated worldwide (PV electric energy in kWh/m2).

http://www.oksolar.com/abctech/solar-radiation.htm
